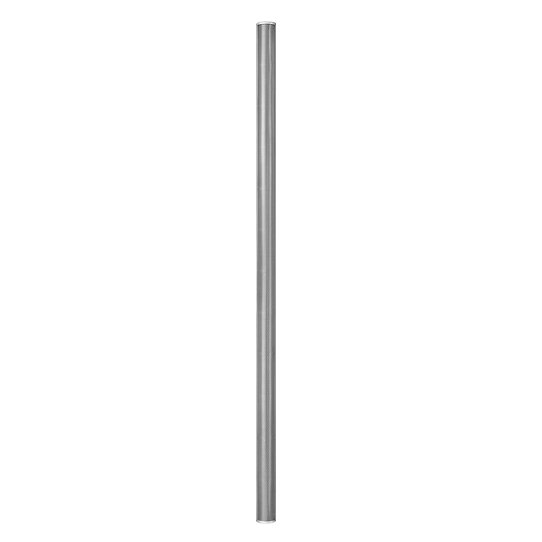

Pipeline slim speaker PLS-4WP


We always hear from our customers, “No way! Is this speaker?”

High power in compact body, best seller, it's thin!!

PLS series is slimmer than PL series…It's just handrail size!

Our Japanese customers use it as digital signage projects, Blackboard speaker, etc.



*Note: Shown price/quantity is for one speaker. You want to hear L,R channel, buy 2 speakers.



145 in stock (can be backordered)


Pipeline speakers are revolutionary and literary line array speakers which create ideal line sound source in a wide range by arraying multiple FPS transducer units with line array structure and properties.


By arraying transducers in line, “Pipeline speakers” have double line array structures in each speaker, which is impossible to achieve with conventional cone speakers. “Pipeline speakers” operate as ideal line array speakers in a wide range. “Pipeline speakers” are unique line array speakers fully demonstrating necessary properties as line array speakers.





Product name / Model name Pipeline Slim Speaker PLS-4WP
Type Line array (Full range single amp driven)
Speaker Unit Linearray speaker unit (FPS-WP0103MN08 x 4pcs)
Rated Impedance
Rated Input 40W constantly
Max Input 80W moment peak
Sound Pressure Level 81db/W/m
Frequency Range 190Hz-7.5kHz
Directional Characteristics Vertical 30°, Horizontal 220° (4kHz-3dB)
Input Connector RCA pin jack
Cabinet Aluminium
Hanging Point φ3/8 inch nut plate hole (up&bottom)
Dimensions φ42mm x 1000mm
Weight 1.4kg
Color Silver (glossy)




Additional information

Weight 2 kg
Dimensions 110 x 8 x 8 cm
