Transducer hybrid FPS0105….(5cells)

US$44.88

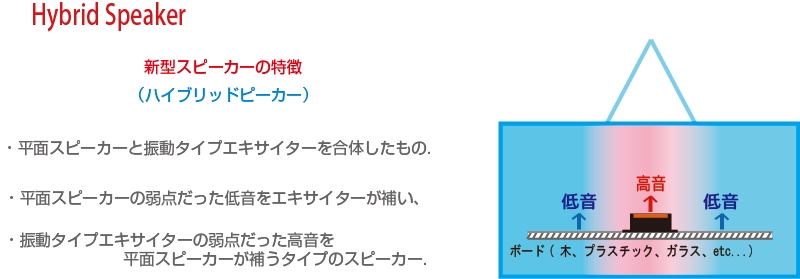

Flat speaker + Exciter speaker = FPS Hybrid Speaker

  • Ultra-wide from 50Hz to 15kHz (depends on mounting material)
  • Integrated mounting frame
  • High-power neodymium moving magnet type

FPS0105HY-02 hybrid flat exciter speakers sound changeable by mounted material. *Note: Stock only



538 in stock

Description

abouthybrid-illust



Applications

  • Furniture, Automobiles (speakers in ceiling), blackboards, window displays, poster boards for presentations, digital signage products etc.

Specifications

Product Name FPS0105HY-02
Type Hybrid Type Speaker unit (Flat exciter)
Rated Input 10W (Max15W)
Rated Impedance
Frequency Characteristics Depends on mounted materials (50Hz-)
SPL 82dB ±3dB (When mounting isocyanurate board t=10mm A2-size)
Dimensions W30mm x L150mm x D10.2mm
Weight 75g
Cold/Heat Resistance -40°C to 70°C
Humidity Resistance 40°C, 92-96%
RoHS All parts compliant with RoHS



technicaldata-fps0105hy-02

Additional information

Weight 0.10 kg
