FH-02P new hybrid speaker

¥ 15,570

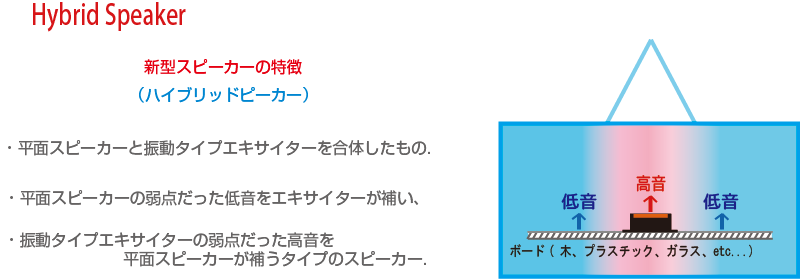

Flat speaker + Exciter speaker = FPS Hybrid Speaker

The new type of hybrid speaker is a high powered speaker combined with an exciter as one unit. It covers both the low and high ends of the sound spectrum.

  • Combines the low frequency effect of an exciter with the output of a planar transducer
  • Ultra-wide 50 to 15k Hz frequency response
  • Integrated mounting frame
  • High-power neodymium motor

148 in stock (can be backordered)

Description



abouthybrid-illust



Applications

  • Furniture, Automobiles (speakers in ceiling), blackboards, show case, displays, poster boards for presentations, digital signage products etc.



Specifications

Product Name FH-02P
Type Hybrid Type Speaker (Flat Exciter)
Rated Input 10W constantly (Max.20W moment peak)
Rated Impedance
Frequency Characteristics Depends on mounted materials
SPL 85dB ±3dB (When mounted on isocyanate board T=10, 320 ± 360mm)
Dimensions W44mm x L150mm x D12.6mm
Weight 85g ±2g
Cold/Heat Resistance -40°C to 70°C
Humidity Resistance 40°C, 92-96%
RoHS対応 All parts compliant with RoHS



technicaldata-fh-02p









Additional information

Weight 0.11 kg

Country of origin

JAPAN

This product is, made in Japan by our expert technician hand.
If the current stocks out, further manufacturing will make in our Malaysia factory.
