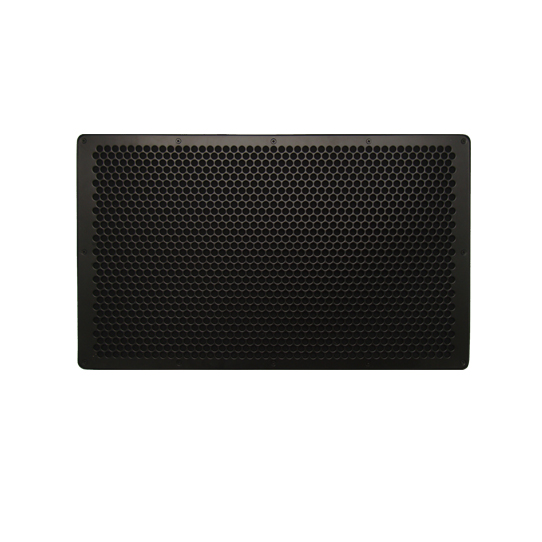

fb6001-web3
fb6001-web4
fb6001-web5
fb6001-web6

Outdoor speaker FB-6001

US$1,602.00US$1,800.00

  • Using the biggest flat speaker unit FPS2030 transducer
  • Precise & targeted transmission
  • High intelligibility
  • Minimal signal feedback
  • Superior volume level with consistency over distance
  • Outdoor use ready
  • Slimness no other
  • High reliability of the proven experience and track record

There are 4 models (LB,LW,HB,HW)

Clear

Description

FBseries-catalog-en

These speakers installed a lot of digital signage advertising in Tokyo, Osaka, and in JR(Japan Railway) stations platform for an announcement.



fb-6001-polar

Specifications

FB-6001-LBFB-6001-LWFB-6001-HBFB-6001-HW
TypeL: Low ImpedanceL: Low ImpedanceH: High ImpedanceH: High Impedance
B: Box type (1 side)W: Double side (2 side)B: Box type (1 side)W: Double side (2 side)
Speaker configurationMCMA flat speaker FPS2030M3P1R x 1pcs
Impedance170Ω (100V/60W), 330Ω (100V/30W) , 670Ω (100V/15W)
InputRated 125W(MAX.250W)60W, 30W, 15W
SPL89dB/W/m
Frequency range250Hz – 10kHz (-10dB)
Directional characteristicsVertical 70℃, Horizontal 50℃ (2kHz -6dB average)
Input connector4 cable straight out4 cable straight out
Red/Pink(+) , White/Translucent(-)Red(COM) , Pink(170Ω) , White(330Ω) , Translucent(670Ω)
Cabinet materialSPCC
Hanging PointM10 x 30 Stud Bolt x 4
DimensionsW500 x H330 x D90 mm
WeightApp. 10.5kgApp. 12.5kg
ColorBlack (N-1 semi-gloss)



zu-fb6001lb

Reference Polar

polar-FB6001LW

polar-FB6001LB



Additional information

Weight12.5-14.5 kg
Dimensions50 x 33 x 9 cm
Speaker type

HB type (1side High impedance), HW type (2side High impedance), LB type (1side Low impedance), LW type (2side Low impedance)
